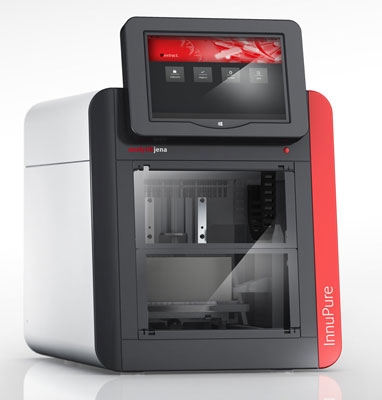

InnuPure C16 touch

IST Innuscreen GmbH

Main Features

• Fully automatic extraction of DNA and RNA
• Separation by magnetic particles or novel SmartExtraction technology
• Combined magnetic/heating unit is moved into position under the bottom of the reagent cartridges
• Extraction based on patented, lowsalt DC-Technology
• Prefilled reagent strips and/or plates for processing between 1 and 16 samples in parallel
• Sealed reagent cartridges simplify and speed up the process
• Manual work is limited to loading the sample tray
• Highly precise pipetting, guaranteed pipette tip seal
• Desired elution volume can be automatically set between 20 and 500 μl with 10 μl step
• Isolated nucleic acids transferred to storage tubes with lids
• Pipette tips with aerosol filters prevent contamination
• Reagent cartridges do not need to be opened manually: instrument pierces seals
• Optional UV lamp provides a simple means of decontaminating the sample chamber
• Stand-alone operation with integrated 10” Tablet
• Quick, direct access to preinstalled extraction protocols
• Barcode-marked extraction kits contain all relevant information



Wide range of extraction kits of nucleic acids from differents types of materials:

1) MAGNETIC BEADS BASED EXTRACTION

innuPREP AniPath DNA/RNA Kit – IPC16

• One kit for everything
• Pre-filled kit for extraction of bacterial DNA and viral DNA or RNA in parallel
• Broad spectrum of starting material from cell-free body fluids to whole blood and fecal samples



innuPREP Bacteria DNA Kit-IPC16

• Optimized for automated bacterial DNA extraction
• Suitable for tissue samples and for gram- or gram+ bacterial pellets



innuPREP Blood DNA Mini Kit-IPC16

• Different protocols for individual needs
• Isolation of genomic DNA from up to 200 μL of whole blood
• Preparation of up to 200 μl, 400 μl and even 600 μl serum, plasma and other cell-free body fluids



innuPREP DNA Kit-IPC16

• Isolation of genomic DNA from different starting materials
• Tissue samples of up to 20 mg, rodent tails, eukaryotic cells (max. = 5 x 10⁶)



innuPREP FFPE DNA Kit-IPC16

• Extraction of genomic DNA from FFPE (formalin-fixed, paraffin-embedded) tissue samples
• Complete elimination of any steps for removal of paraffin



innuPREP Food DNA Kit-IPC16

• Extraction of genomic DNA from a variety of food samples
• Food categorized into lysis-specific groups, followed by preparation protocol



innuPREP Forensic DNA Kit-IPC16

• Automized extraction of genomic DNA
• Optimal for smallest forensic or highly contaminated samples



innuPREP Plant DNA I & DNA II Kit-IPC16

• Isolation of high-quality DNA from fresh or frozen plant material
• Effective removal of inhibiting by-products such as secondary plant metabolites



innuPREP Stool DNA Kit-IPC16

• Isolation of bacterial DNA from fresh or frozen stool samples



innuPREP Virus DNA/RNA Kit-IPC16

• Isolation of virus nucleic acids from cell-free body fluids
• Preparation of up to 200 μl, 400 μl and even 600 μl serum, plasma and other materials



innuPREP RNA Kit–IPC16

• Isolation of total RNA from a wide variety of tissue samples and cells
• No need for highly toxic ß-mercaptoethanol
• Spin Filter column for selective DNA removal reduces time (no DNase I digestion)



PME free-circulating DNA Kit-IPC16

• Automized extraction of free-circulating DNA
• Processing of starting sample volumes up to 10 ml
• Kit uses novel, patent pending technology: Polymer Mediated Enrichment (PME)





2) SMART EXTRACTION TECHNOLOGY

smart Blood DNA Midi Direct prep (a)

• Isolation of genomic DNA from whole blood samples up to 1 ml
• Based on the unique SmartExtraction technology
• Isolation of high-molecular weight DNA up to 500 kbp



smart Blood DNA Midi prep (a)

• Isolation of DNA from PBMC's (Peripheral Blood Mononuclear Cells) from whole blood
• Obtaining of high molecular DNA with a yield up to 90 μg from 3 ml whole blood



smart DNA prep (a)

• Isolation of high molecular weight DNA
• From tissue samples, pieces of rodent tails, eukaryotic cells, bacteria and yeast cells
• Provides enormous DNA yields and reduces preparation time





Documents and resources

For more information about InnuPure C16 touch visit producer's website.

Product brochure InnuPure C16 touch

For more information about extraction kits visit producer's website.
