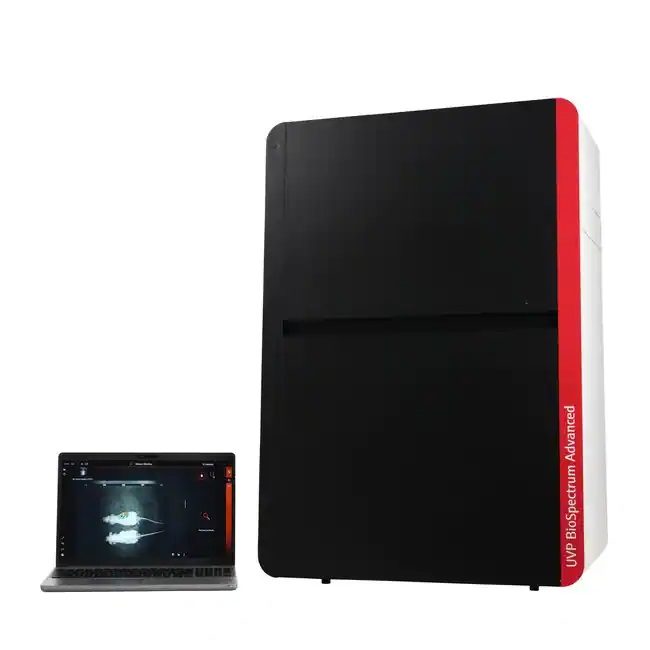

UVP BioSpectrum Advanced
Analytik Jena
All-In-One Automated Bioimaging System
All-in-one imager for any application from gel analysis and documentation to in vivo fluorescence and bioluminescence animal imaging.
System contains VisionWorks Software with comprehensive features (optimized image acquisition and analysis) and automated templates for repeated experimentsx.
Three models available:
- UVP BioSpectrum Advanced, Chemiluminescence/Fluorescence 695
- UVP BioSpectrum Advanced, In Vivo 695
- UVP BioSpectrum Advanced, In Vivo 900
UVP BioSpectrum Chemiluminiscence/Fluorescence 695
- Deeply-cooled CCD 6.0 MPx camera
- Cooling from Ambient: -57°C
- Ultra-low light 25mm f/0.95 automatic lens
- Overhead white light LED
- Laser bars in violet (405 nm), blue (480 nm), green (520 nm), red/NIR1 (650 nm), and NIR2 (780 nm)
- 6-position automated filter wheel on slide-out tray (with RFID-based auto filter detection)
- UVP Transilluminator 302 nm or UVP Visi-Blue Transilluminator
- EtBr emission filter included
Applications
- Chemiluminiscence
- Bioluminescence
- Multiplex fluorescence
- NIR and RGB
- DNA gels
- Protein gels
- Plant imaging
- Fluorescent dyes
- Colorimetric imaging
- Colony counting
UVP BioSpectrum In Vivo 695/900
- Deeply cooled CCD cameras:
- In Vivo 695: 6MPx camera, cooling from ambient: -57°C
- In Vivo 900: 1.05 MPx camera, cooling from ambient: -100°C
- Ultra-low light 25mm f/0.95 automatic lens
- Overhead white light LED
- Laser bars in violet (405 nm), blue (480 nm), green (520 nm), red/NIR1 (650 nm), and NIR2 (780 nm)
- 6-position automated filter wheel on slide-out tray (with RFID-based auto filter detection)
- GFP and RFP emission filters included

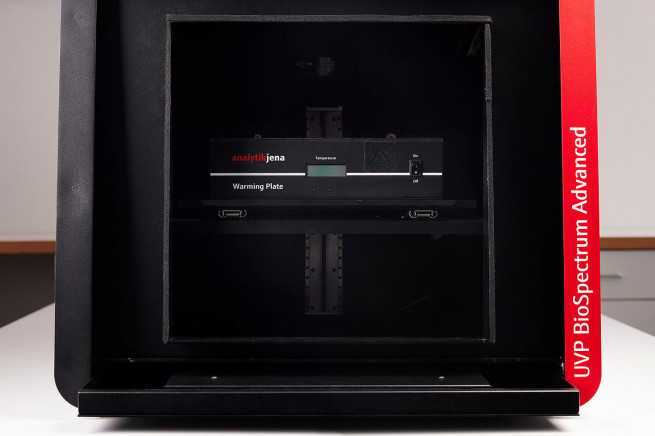

- Warming plate for 1 to 10 mice
- Motorized lift with position repeatability within 0.1”
- Optional anesthesia system
- Optional 3D in vivo imaging modules (InVivo Analytics) for 3D modeling of in vivo models
Applications
- Small animal in vivo imaging
- In vivo fluorescence and bioluminescence
Documents and resources
For more information visite the producer's website.
